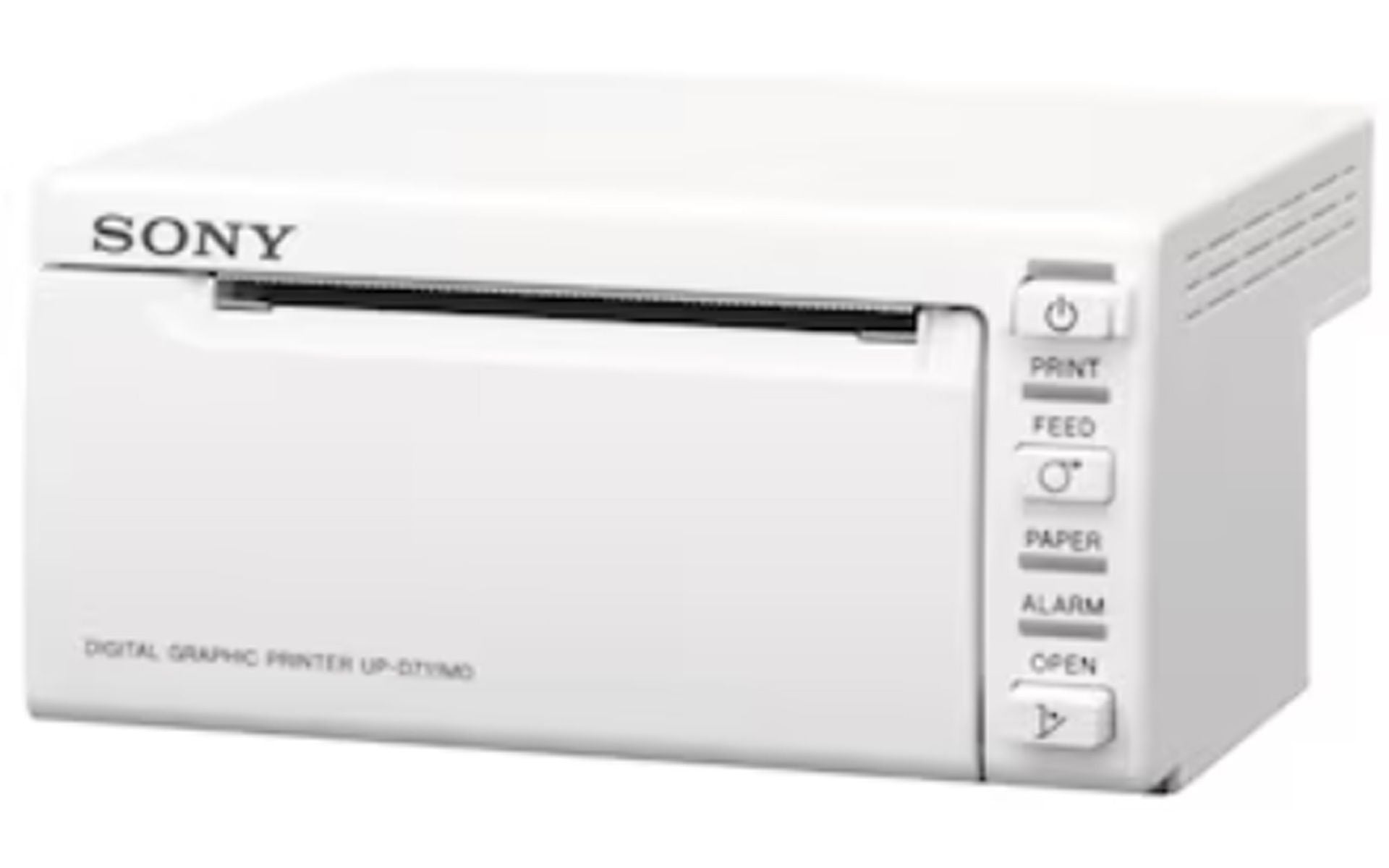

Sony UP-D711MD (compact digital A7 thermal printer for ultrasound)
Compact A7 digital black-and-white thermal printer for ultrasound
Sony UP-D711MD is Sony’s most compact digital black-and-white medical thermal printer, designed to integrate with ultrasound and endoscopic systems via USB. Many of the newer GE and Philips ultrasound systems have a built-in bay designed specifically for this printer. With 3:1 panoramic printing it is also ideal for dental imaging.
Compact and light:
Only 140 × 70 × 125 mm and ~1 kg — fits almost anywhere, including tight carts and systems.
Digital USB input:
Connects directly to ultrasound and endoscopic systems. Replaces exactly the models the new GE/Philips ultrasounds have a bay for.
High-quality thermal printing:
~300 dpi resolution and 8-bit (256 levels) — clear, detailed monochrome prints in ~5 seconds.
4:3 and 3:1 panoramic formats:
The 3:1 panoramic mode is ideal for dental and specific imaging applications.
Genuine media:
Thermal paper UPP-84HG (84 mm × 12.5 m) and UPP-84S (84 mm × 13.5 m).
| Feature | Parameters |
| Printing method | Direct thermal printing |
| Resolution | ~300 dpi |
| Gradation | 8 bits (256 levels) |
| Picture elements | 896 × 1,196 dots |
| Print formats | 4:3 and 3:1 panoramic |
| Paper size | Width 84 mm (3 1/2″) |
| Media | UPP-84HG (84 mm × 12.5 m); UPP-84S (84 mm × 13.5 m) |
| Printing time | ~5 s (high speed) / ~8 s (normal) |
| Interface | USB |
| Power | DC 12 – 24 V (or via AC adapter) |
| Dimensions (W × H × D) | 140 × 70 × 125 mm |
| Mass | ~1 kg |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. The product is a medical device and complies with safety standards (e.g. IEC 60601-1).
