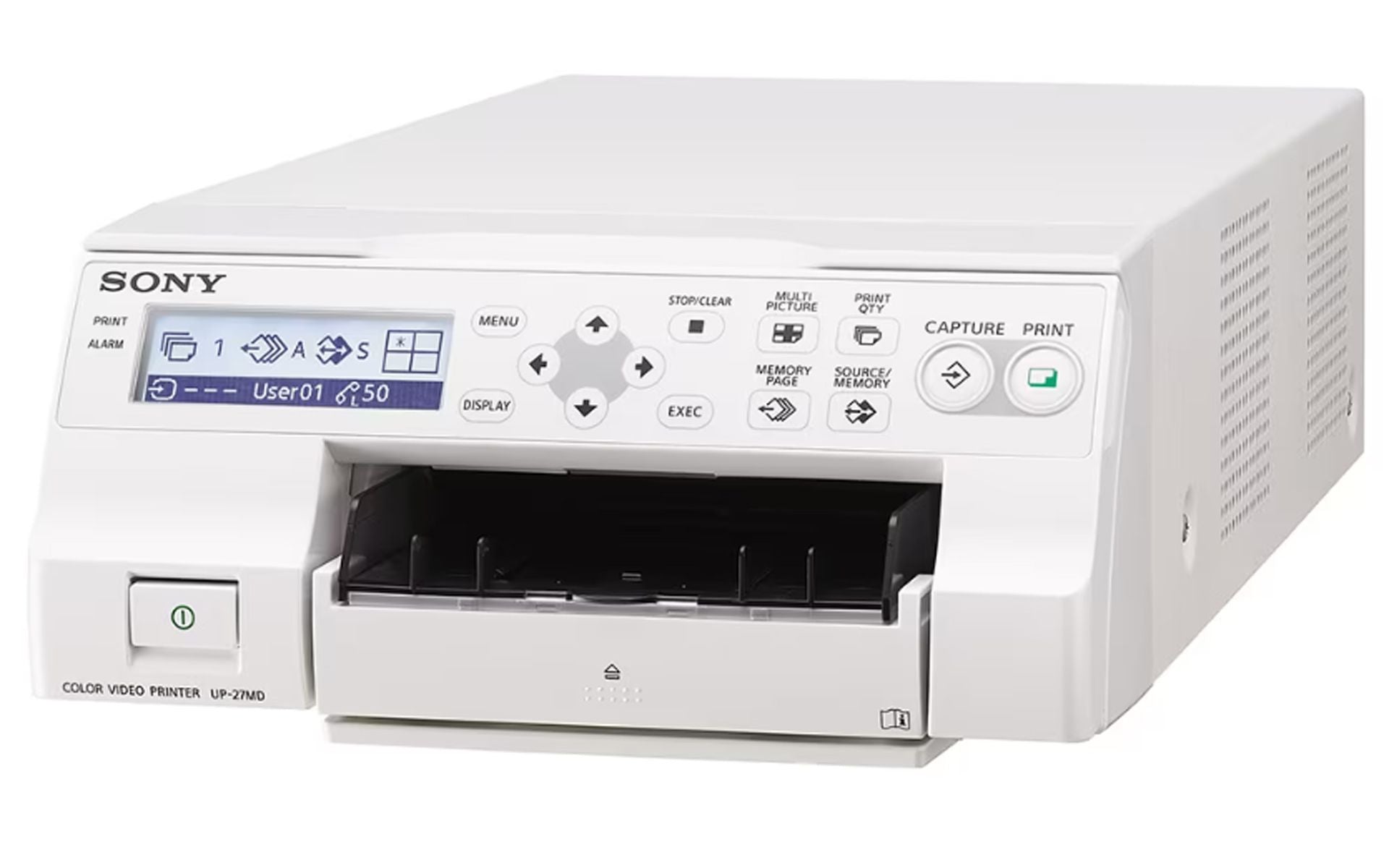

Sony UP-27MD medical color video printer (dye sublimation)
Compact medical color video printer with SDI
Sony UP-27MD is a compact medical color video printer using dye sublimation, ideal for endoscopy, ultrasound and cardiology. Unlike the UP-D25MD, it features built-in SDI inputs and outputs (3G/HD/SD-SDI) for direct connection up to Full HD 1080p. Photorealistic quality at 423 dpi.
Built-in SDI in/out:
HD/SD/3G-SDI for smooth video signal transmission up to Full HD 1080p.
Photorealistic 423 dpi:
Beyond Full HD quality (2,132 × 1,600 with UPC-21L).
Large front LCD:
Clear text and icons for intuitive operation.
Auto roller cleaning:
Reduces periodic manual cleaning.
HSV color adjustment:
Hue/saturation/value plus 9-split balance test print.
Compact:
212 × 98 × 398 mm — rack-mounts on medical carts.
| Feature | Parameters |
| Printing method | Dye sublimation thermal transfer |
| Resolution | 423 dpi |
| Gradation | 256 levels (8-bit) each YMC |
| Picture elements | UPC-21L 2,132×1,600; UPC-21S 1,600×1,260 |
| Interface | USB 2.0; SDI IN/OUT (BNC) 3G/HD/SD-SDI |
| SDI format | 1080p, 1080i, 480i, 576i |
| Printing time | UPC-21L ~29 s; UPC-21S ~19 s |
| Power | AC 100–240 V |
| Dimensions | 212 × 98 × 398 mm |
| Mass | 5.7 kg |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. Medical device (IEC 60601-1).
