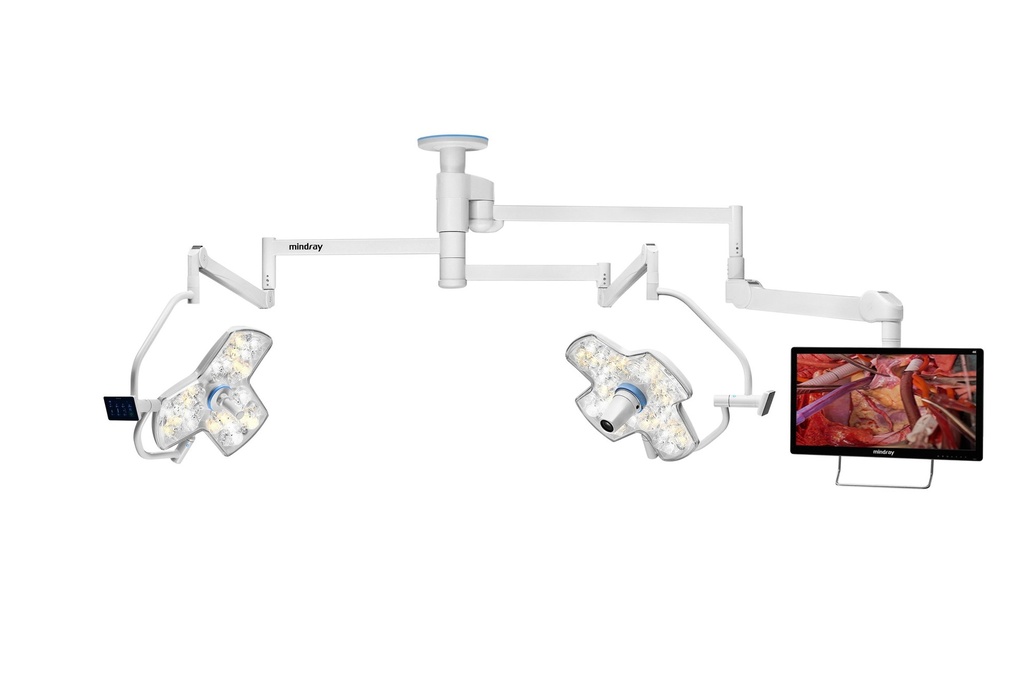

    Mindray HyLED C50 Vet — Premium LED Operating Light for Veterinary Clinics

    HyLED C50 Vet is Mindray's flagship LED operating light, designed specifically for veterinary surgical procedures. With 160,000 lux peak illumination, CRI 99 and the innovative Multi-Patch Superposition Technology (MPST), HyLED C50 delivers uncompromising lighting for every veterinary procedure — from routine to complex.

    Available in two configurations

    • Single Head — optimal for smaller clinics, examinations and standard operations

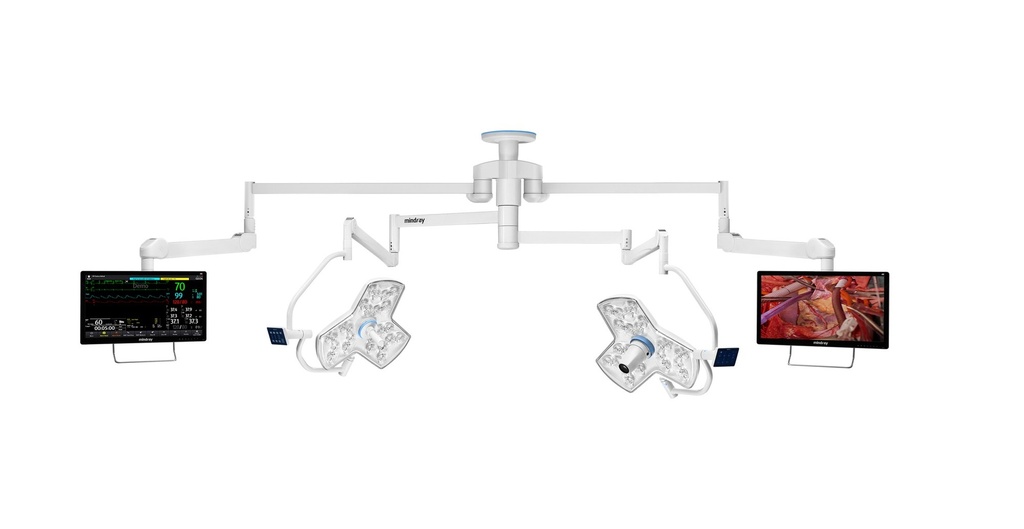

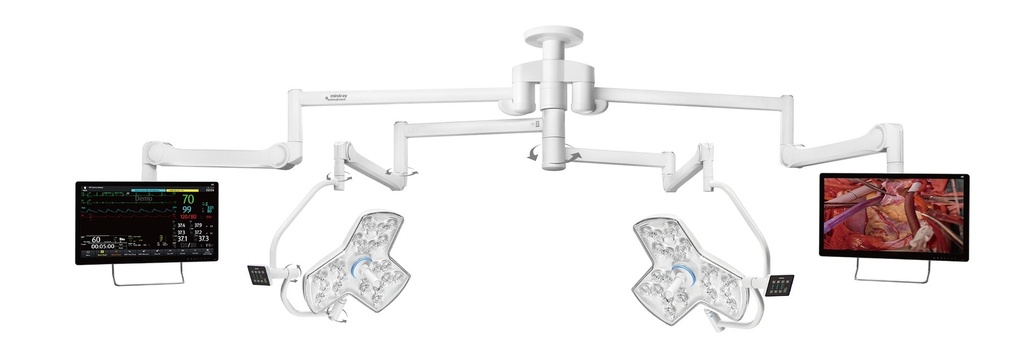

    • Dual Head + Camera + Display Arm — premium variant with two lighting heads, integrated 4K/FHD camera and arm for external monitor

    Key advantages

    • 160,000 lux peak illumination at 1 m — class-leading intensity
    • CRI 99, R9 = 97 — accurate color rendering of tissues, blood, organs
    • MPST technology (Multi-Patch Superposition) — uniform field even when blocked by the surgeon
    • 24 LED modules, lifespan 60,000 hours (~7 years 24/7)
    • 5 color temperature ranks — 3,500/3,700/4,000/4,350/5,100 K (optional)
    • Auto focus — automatic light spot focusing
    • 5 field sizes 140-270 mm — flexibility for any procedure
    • Anti-flicker design — flicker-free, safe for video recording
    • MIS mode — 8,000 lux for minimally invasive procedures
    • Optional backup power — 6 hours on battery

    Video options (Dual Head configuration)

    • FHD integrated camera in the center of the lamp
    • 4K camera on separate arm — professional documentation
    • Wireless FHD camera — optional
    • Mindray video recorder — recommended for recording

    Veterinary applications

    • Major surgery — orthopedics, soft tissue, neurosurgery
    • Minor procedures — sterilizations, castrations, dental surgery
    • Minimally invasive procedures — laparoscopy (MIS mode)
    • Emergency surgery — trauma, laparotomies
    • Examinations and diagnostics — detailed lighting for visual assessment
    • Training and documentation — with camera for video recording (Dual variant)

    Mounting options

    • Ceiling mount — standard, clean design
    • Mobile (wheeled version) — flexibility

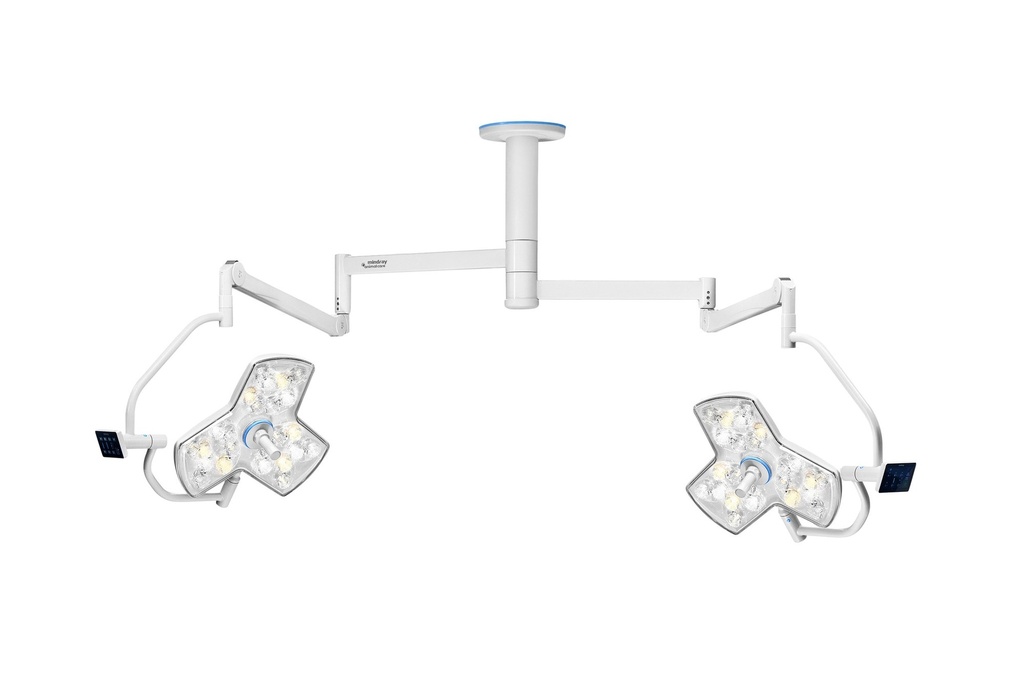

    • Single / Dual / Triple head combinations

    Optical performance

    Light source typeLED
    Peak illumination (1 m)160,000 lux
    MIS mode8,000 lux
    Dimming range20% - 100% via control panel
    Field size (D10)140-270 mm in 5 steps
    Light field ratio (D50/D10)0.6
    Auto focusYes
    Number of LEDs24
    LED lifespan60,000 hours
    Color temperatureStandard 4,350 K; optional 5 ranks 3,500-5,100 K
    CRI (Color Rendering Index)Ra = 99
    R9 value97 (important for tissue differentiation)
    Depth of illumination (20%)1,300 mm (large field)
    Depth of illumination (60%)700 mm (large field)
    Anti-flicker designYes — flicker-free
    Optic designMPST (Multi-Patch Superposition Technology)

    Shadow management

    One lateral mask0.71
    One lateral mask + cavity0.66
    With tube1.00
    Double mask0.56
    Double mask + cavity0.51

    Video solutions (Dual Head)

    CameraFHD (integrated / arm) or 4K (carrier arm)
    Wireless cameraFHD (optional)
    LocationCenter of light head or on separate arm
    Recommended recorderMindray video recorder

    Power supply

    Light source consumption30 W
    Max irradiance (1 m)530 W/m²
    Heat-to-light ratio3.5 mW/(m²·lx)
    Supply voltage100-240 VAC, 50/60 Hz (24V for LEDs)
    Backup power12V DC × 2, 15 Ah, lead-acid (optional)
    Battery runtime6 hours (at level-6 illumination)

    Construction and mounting

    Mounting typeCeiling mounted; mobile version available
    CombinationsSingle, Dual or Triple head + spring arm

    Documents to download

    Mindray HyLED C50 Vet — Brochure (ENG) (PDF)

    Frequently asked questions about Mindray HyLED C50 Vet

    What is the difference between Single Head and Dual Head + Camera?

    Single Head has one operating light — optimal for smaller clinics, examinations and minor procedures. Dual Head + Camera + Display Arm is the premium configuration with two lighting heads (better shadow management) + integrated 4K/FHD camera + arm for external display — for documenting complex surgeries and training.

    How many lux does HyLED C50 provide?

    Maximum illumination 160,000 lux at 1 meter distance — among the highest in its class. For minimally invasive procedures there is a dedicated MIS mode with 8,000 lux. Intensity is adjustable 20%-100% from the control panel.

    What is the color temperature?

    Standard 4,350 K (neutral white). Optional — 5 ranks for variable temperature: 3,500 / 3,700 / 4,000 / 4,350 / 5,100 K. CRI (Color Rendering Index) 99 — accurate tissue color rendering. R9 = 97 (important for differentiating tissue types during surgery).

    How long do the LEDs last?

    60,000 hours LED lifespan — equivalent to ~7 years continuous use or ~25 years at 8 hours per day. The light unit has 24 LEDs with Multi-Patch Superposition Technology (MPST) for uniform illumination, even when blocked by the surgeon.

    Is there backup power?

    Optional — 12V DC × 2, 15 Ah lead-acid batteries. Provides 6 hours of operation at level-6 illumination. Suitable for clinics without UPS or in regions with unstable electricity.

    What mounting options are available?

    Ceiling mount — standard; mobile (wheeled version) — for flexibility. Single head, dual head or triple head configurations are possible. The display with camera mounts on a separate/integrated arm.

    Specifications

    HyLED C50 Configuration Single Head ή Dual Head + Camera + Display Arm
