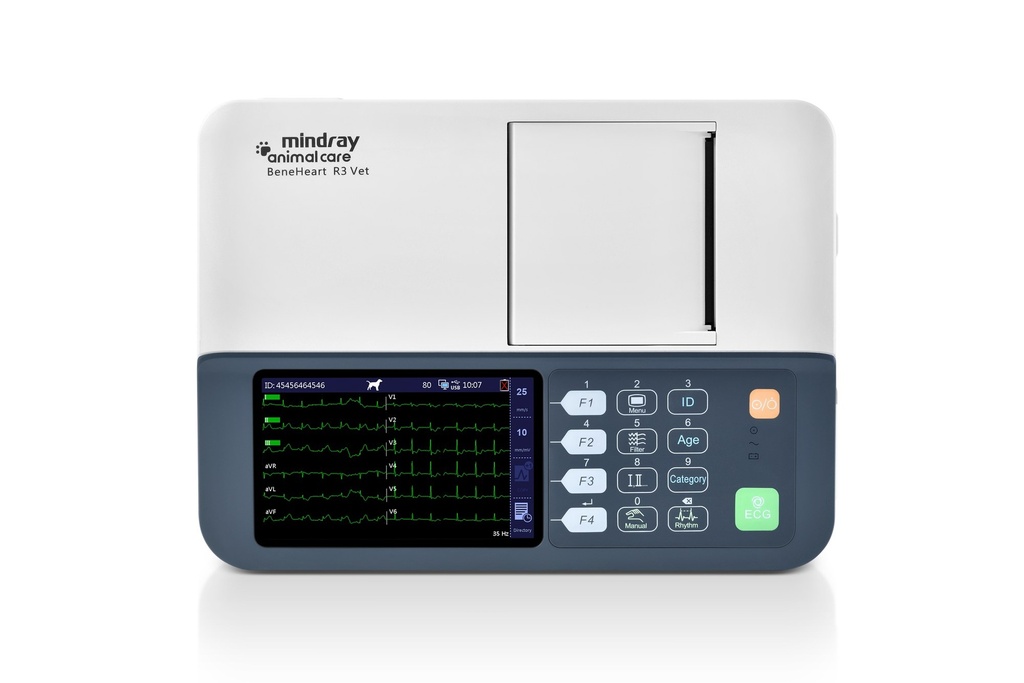

Mindray BeneHeart R3 Vet — Veterinary 3-Channel Electrocardiograph

https://infinita.ltd/web/image/product.template/20866/image_1920?unique=f1cf13d

633,94 € 633.94 EUR 864,10 € VAT Excluded

2028,04 лв VAT Excluded

​

    Αυτός ο συνδυασμός δεν υπάρχει.

    Επικοινωνήστε μαζί μας

    Terms and Conditions
     Delivery

    Mindray BeneHeart R3 Vet — veterinary 3-channel electrocardiograph for fast and precise ECG examinations

    Mindray BeneHeart R3 Vet is a veterinary 3-channel electrocardiograph, designed for routine and precise ECG examinations in small and medium veterinary clinics. Compact, easy to operate, with integrated printer for instant printing and result storage.

    Key advantages

    • 3-channel recording — simultaneous 3-lead capture
    • 12-отвеждания ЕКГ — пълен запис с 12 отвеждания с автоматично превключване
    • Integrated thermal printer — A4 or 80mm rolls
    • Compact design — portable, lightweight, easy to carry
    • Сензорен екран + клавиатура — гъвкав интерфейс
    • Glasgow Mindray veterinary algorithm — automatic interpretation for veterinary ECG
    • SD card + USB — result storage for archive
    • 4-hour battery — operation away from mains
    • Lead-off detection — automatic detection of loose electrodes
    • AC 50/60 Hz filtering — stable recording without noise

    Veterinary applications

    • Routine ECG examinations — for cardiac complaints
    • Pre-anesthetic assessment — mandatory for older animals
    • Cardiology diagnostics — arrhythmias, conduction disorders
    • Emergency cases — quick rhythm assessment
    • Скрининг — за породи с известна предразположеност

    Patient types

    • Dogs — all breeds and sizes
    • Cats — standard and emergency diagnostics
    • Large animals — horses, cattle (with appropriate electrodes)
    • Exotic pets — with conductive electrode access

    ECG recording

    Channels3 (simultaneous) + 12-lead mode
    Leads12 (Limb + Augmented + V1-V6)
    Sampling rate500 / 1000 Hz
    Resolution24-bit
    Dynamic range±5 mV
    FiltersAC 50/60 Hz, Baseline drift, EMG

    Display

    TypeColor touch screen LCD
    Size8" or similar
    ResolutionWVGA

    Printer

    TypeThermal, integrated
    Paper80mm rolls or A4
    Speed5/10/12.5/25/50 mm/s
    Sensitivity2.5/5/10/20 mm/mV

    Memory and I/O

    StorageSD card + USB
    RecordsDepends on SD capacity
    Export formatPDF, XML, DICOM (opt.)
    CommunicationUSB, Ethernet, Wi-Fi (opt.)

    Battery and power

    AC power100-240 V, 50/60 Hz
    BatteryLi-ion, ~4 hours operation
    Charge time<3 hours

    Algorithms

    InterpretationGlasgow Mindray veterinary algorithm
    DetectionArrhythmias, ST changes, conduction blocks
    Auto-measurementPR, QRS, QT, QTc, axis

    Dimensions and weight

    SizePortable compact
    Weight~5-7 kg
    StandardsCE, ISO 13485, IEC 60601-1

    Documents to download

    Mindray BeneHeart R3 Vet — Brochure (ENG) (PDF)

    Frequently asked questions about Mindray BeneHeart R3 Vet

    What is the difference between BeneHeart R3 Vet and R12?

    R3 е 3-канален апарат със запис на 12 отвеждания — оптимален за рутинни ЕКГ изследвания. R12 е 12-канален апарат с едновременен запис — за по-сложни кардиологични случаи и научно-изследователска дейност. R3 е достатъчен за нуждите на повечето ветеринарни клиники.

    Is there automatic ECG interpretation?

    Yes — built-in Glasgow Mindray veterinary algorithm identifies arrhythmias, ST changes, conduction blocks and automatically measures PR, QRS, QT/QTc intervals and axis. IMPORTANT: interpretation is assistive — final decision rests with the veterinary doctor.

    Which electrodes are used on animals?

    Стандартни ЕКГ електроди (скоба/крокодилска щипка за крайници, самозалепващи електроди за гръден кош) с проводящ гел или физиологичен разтвор. За дълга козина — изстригване на малки участъци козина за добър електрически контакт. Mindray предлага специализирани ветеринарни кабели.

    How many records does it store?

    С 8 GB SD карта — между 1000 и 2000 ЕКГ записа в стандартен формат. С трансфер чрез USB — неограничено външно хранилище. Експорт в PDF за пациентски досиета и архив.

    Does it work on battery?

    Yes — Li-ion battery provides ~4 hours operation without AC. Suitable for field work (farms, emergency cases), with patients far from outlets. Charge time <3 hours.
