Mindray BeneHeart R3 Vet — Veterinary 3-Channel Electrocardiograph

https://infinita.ltd/web/image/product.template/20866/image_1920?unique=527781c

This product is no longer available.

 Terms and Conditions
 Delivery

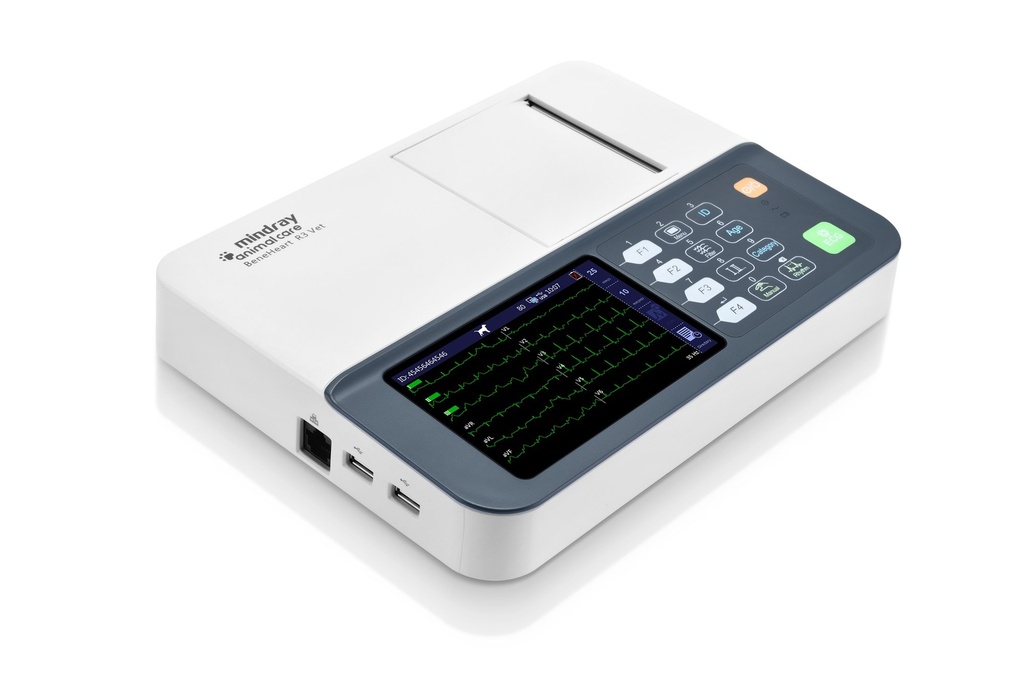

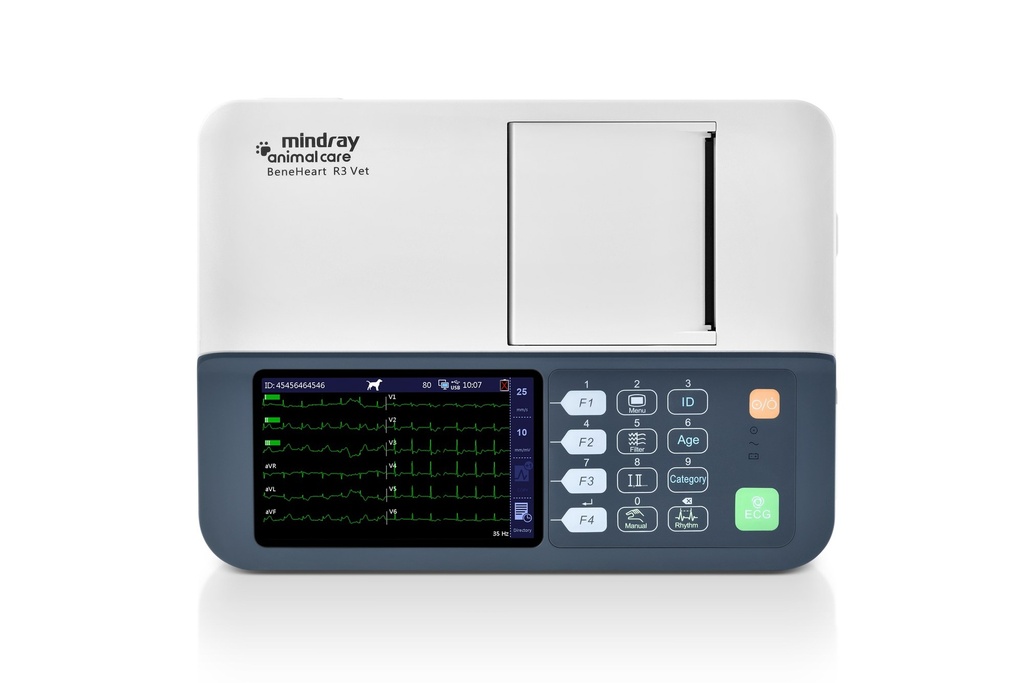

Mindray BeneHeart R3 Vet — veterinary 3-channel electrocardiograph for fast and precise ECG examinations

Mindray BeneHeart R3 Vet is a veterinary 3-channel electrocardiograph, designed for routine and precise ECG examinations in small and medium veterinary clinics. Compact, easy to operate, with integrated printer for instant printing and result storage.

Key advantages

  • 3-channel recording — simultaneous 3-lead capture
  • 12-отвеждания ЕКГ — пълен запис с 12 отвеждания с автоматично превключване

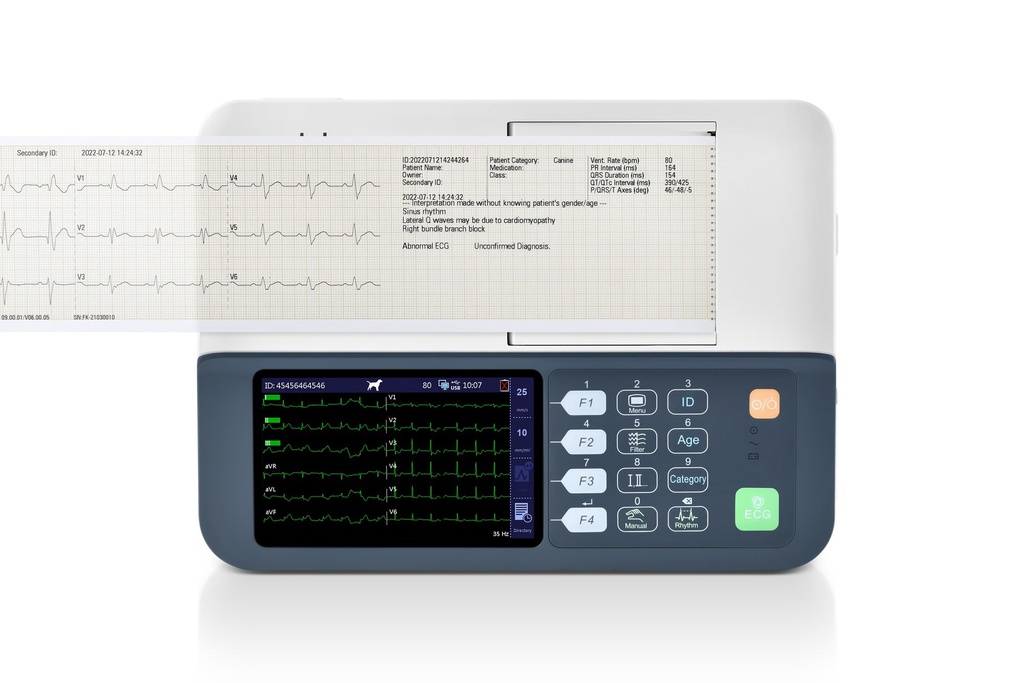

  • Integrated thermal printer — A4 or 80mm rolls
  • Compact design — portable, lightweight, easy to carry
  • Сензорен екран + клавиатура — гъвкав интерфейс
  • Glasgow Mindray veterinary algorithm — automatic interpretation for veterinary ECG
  • SD card + USB — result storage for archive
  • 4-hour battery — operation away from mains
  • Lead-off detection — automatic detection of loose electrodes
  • AC 50/60 Hz filtering — stable recording without noise

Veterinary applications

  • Routine ECG examinations — for cardiac complaints
  • Pre-anesthetic assessment — mandatory for older animals
  • Cardiology diagnostics — arrhythmias, conduction disorders
  • Emergency cases — quick rhythm assessment
  • Скрининг — за породи с известна предразположеност

Patient types

  • Dogs — all breeds and sizes
  • Cats — standard and emergency diagnostics
  • Large animals — horses, cattle (with appropriate electrodes)
  • Exotic pets — with conductive electrode access

ECG recording

Channels3 (simultaneous) + 12-lead mode
Leads12 (Limb + Augmented + V1-V6)
Sampling rate500 / 1000 Hz
Resolution24-bit
Dynamic range±5 mV
FiltersAC 50/60 Hz, Baseline drift, EMG

Display

TypeColor touch screen LCD
Size8" or similar
ResolutionWVGA

Printer

TypeThermal, integrated
Paper80mm rolls or A4
Speed5/10/12.5/25/50 mm/s
Sensitivity2.5/5/10/20 mm/mV

Memory and I/O

StorageSD card + USB
RecordsDepends on SD capacity
Export formatPDF, XML, DICOM (opt.)
CommunicationUSB, Ethernet, Wi-Fi (opt.)

Battery and power

AC power100-240 V, 50/60 Hz
BatteryLi-ion, ~4 hours operation
Charge time<3 hours

Algorithms

InterpretationGlasgow Mindray veterinary algorithm
DetectionArrhythmias, ST changes, conduction blocks
Auto-measurementPR, QRS, QT, QTc, axis

Dimensions and weight

SizePortable compact
Weight~5-7 kg
StandardsCE, ISO 13485, IEC 60601-1

Documents to download

Mindray BeneHeart R3 Vet — Brochure (ENG) (PDF)

Frequently asked questions about Mindray BeneHeart R3 Vet

What is the difference between BeneHeart R3 Vet and R12?

R3 е 3-канален апарат със запис на 12 отвеждания — оптимален за рутинни ЕКГ изследвания. R12 е 12-канален апарат с едновременен запис — за по-сложни кардиологични случаи и научно-изследователска дейност. R3 е достатъчен за нуждите на повечето ветеринарни клиники.

Is there automatic ECG interpretation?

Yes — built-in Glasgow Mindray veterinary algorithm identifies arrhythmias, ST changes, conduction blocks and automatically measures PR, QRS, QT/QTc intervals and axis. IMPORTANT: interpretation is assistive — final decision rests with the veterinary doctor.

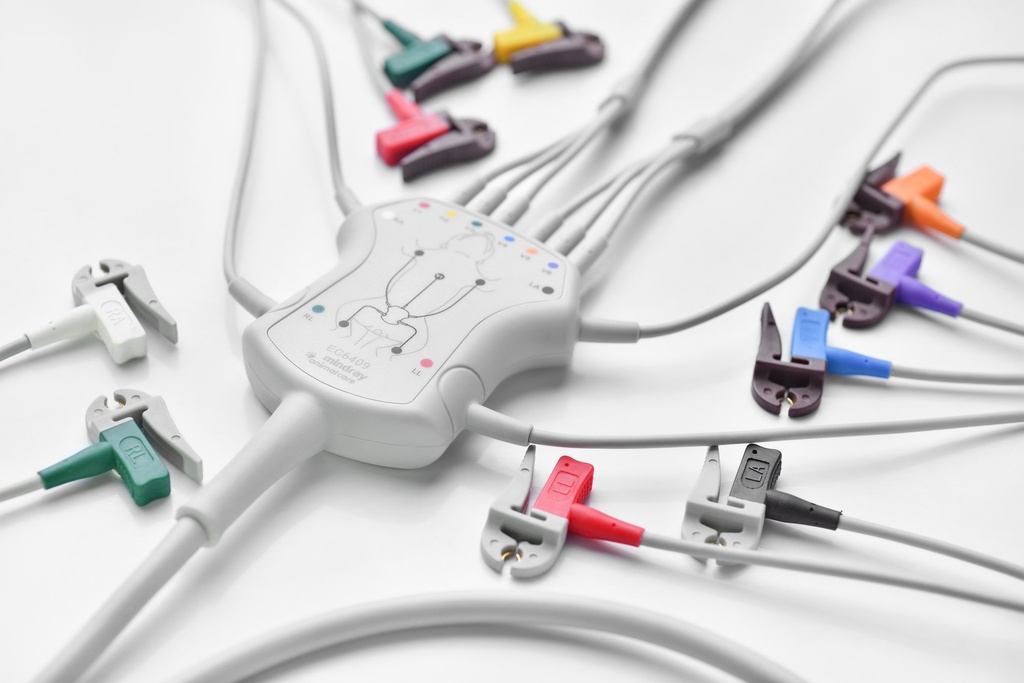

Which electrodes are used on animals?

Стандартни ЕКГ електроди (скоба/крокодилска щипка за крайници, самозалепващи електроди за гръден кош) с проводящ гел или физиологичен разтвор. За дълга козина — изстригване на малки участъци козина за добър електрически контакт. Mindray предлага специализирани ветеринарни кабели.

How many records does it store?

С 8 GB SD карта — между 1000 и 2000 ЕКГ записа в стандартен формат. С трансфер чрез USB — неограничено външно хранилище. Експорт в PDF за пациентски досиета и архив.

Does it work on battery?

Yes — Li-ion battery provides ~4 hours operation without AC. Suitable for field work (farms, emergency cases), with patients far from outlets. Charge time <3 hours.
