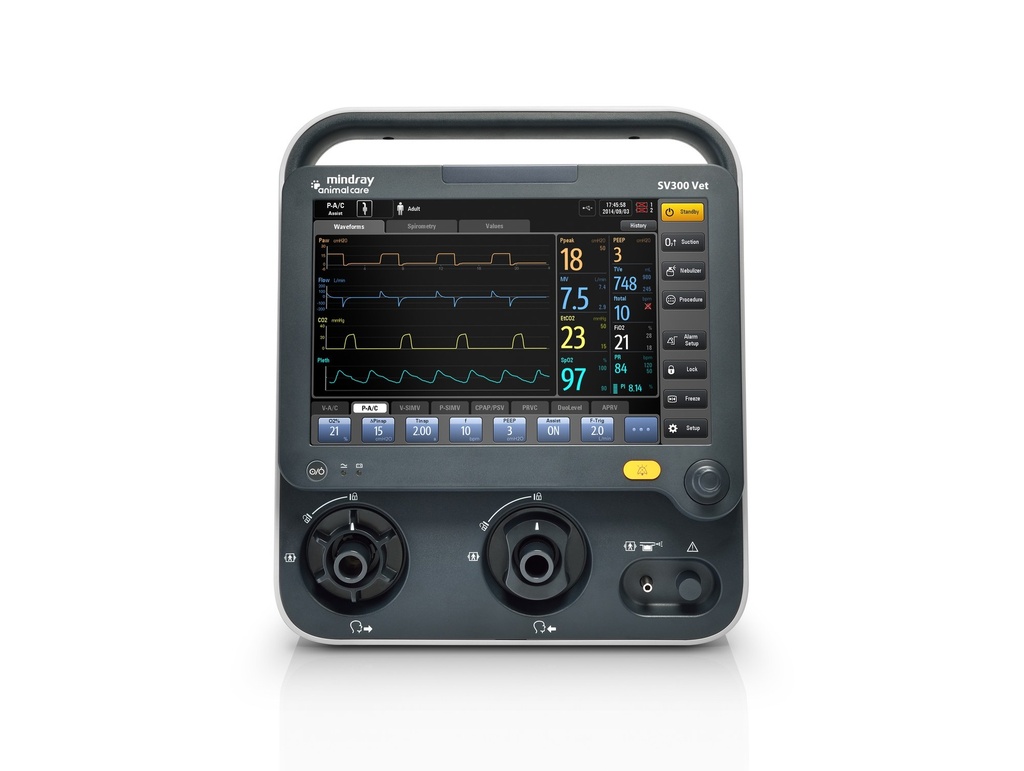

    Mindray SV300 Vet — Veterinary ICU Ventilator for Invasive and Non-Invasive Ventilation

    Mindray SV300 Vet is a universal veterinary mechanical ventilator designed for intensive care, post-operative recovery and emergency use. With support for adult, pediatric and neonate patients, 14+ ventilation modes and up to 6 hours of battery, the SV300 Vet covers a wide range of veterinary scenarios — from small animals to large breeds.

    Key advantages

    • 14+ ventilation modes — invasive (V-A/C, P-A/C, SIMV, APRV, PRVC) and non-invasive (CPAP, NIV, nCPAP)
    • Universal for adult/pediatric/neonate — tidal volume from 2 mL to 2000 mL
    • IntelliCycle — adaptive synchronization with patient breathing
    • PulmoSight — graphical visualization of lung mechanics
    • Lung Recruitment Tool — standardized procedure for recruiting atelectatic zones
    • 12.1" color touch screen 1280×800 — intuitive interface
    • Up to 6 hours battery (with 2 batteries) — safe patient transport
    • Monitoring modules — SpO2, sidestream CO2, O2 sensor, resistance, compliance, RSBI, WOB
    • Automatic Tube Resistance Compensation (ATRC) — compensates ET/trach tube resistance
    • Automatic Leakage Compensation — up to 65 L/min (adult)

    Veterinary applications

    • Intensive Care Unit (ICU) — prolonged ventilation of critical patients
    • Post-operative recovery — supportive ventilation after major surgery
    • Emergency cases — trauma, poisoning, acute respiratory failure
    • Respiratory distress — pneumonia, pulmonary edema, ARDS
    • Critical patient transport — up to 6 hours on battery
    • Non-invasive ventilation (NIV) — alternative to intubation in stable patients

    Patient types

    • Adult — large breed dogs, large animals (Tidal Volume 100-2000 mL)
    • Pediatric — cats, medium/small breed dogs (Tidal Volume 20-300 mL)
    • Neonate — newborn animals, miniature breeds (Tidal Volume 2-100 mL)

    Display and interface

    Screen12.1" Color TFT touch screen
    Resolution1280 × 800 pixels
    BrightnessAdjustable
    CommunicationRS-232, Nurse call, VGA, USB, Ethernet, Wireless

    Ventilation modes

    Invasive volumeV-A/C, V-SIMV, PRVC, PRVC-SIMV
    Invasive pressureP-A/C, P-SIMV, PSV, APRV, DuoLevel
    AdaptiveAMV (Adaptive Minute Ventilation), VS (Volume Support)
    EmergencyCPRV (Cardio-Pulmonary Resuscitation Ventilation)
    Non-invasiveNIV, nCPAP, CPAP, Apnea Ventilation

    Tidal volume and parameters

    Adult Tidal Volume100 - 2000 mL
    Pediatric Tidal Volume20 - 300 mL
    Neonate Tidal Volume2 - 100 mL
    O2 concentration21 - 100 vol.%
    Frequency (Adult/Ped)1 - 100/min
    Frequency (Neonate)1 - 150/min
    I:E ratio1:10 to 4:1
    PEEP0 - 50 cmH2O
    Pinsp (inspiration pressure)1 - 80 cmH2O

    Monitoring and sensors

    SpO2 moduleRange 0-100%, PR 20-254/min, PI 0.05-20%
    CO2 sidestreamEtCO2 range 0-99 mmHg, resolution 1 mmHg
    O2 sensorGalvanic fuel cell, response < 15 s

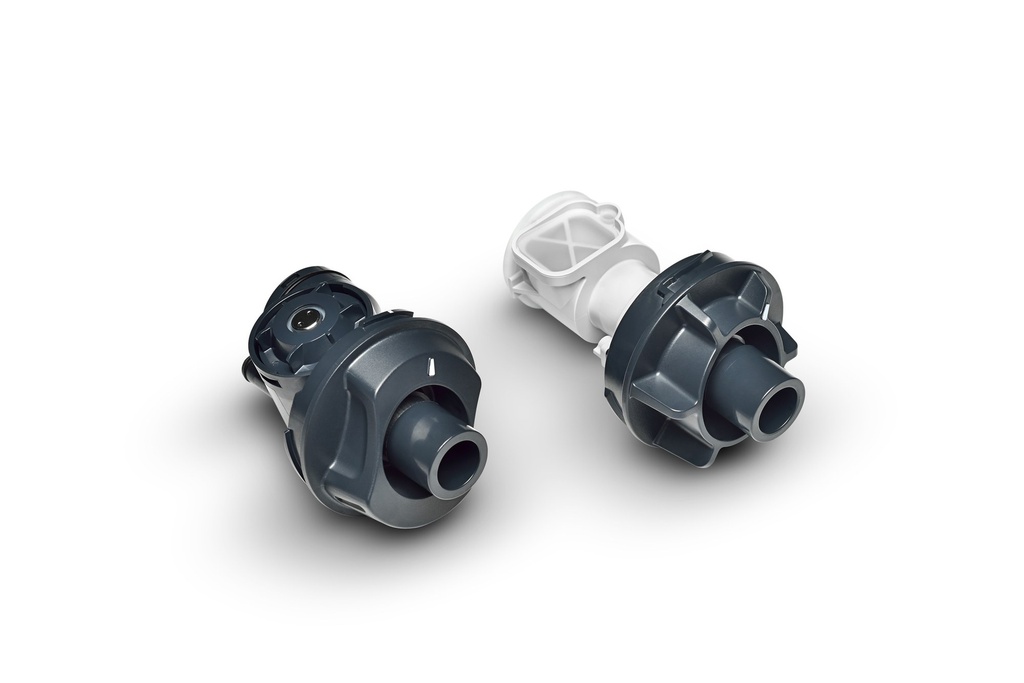

    Neonatal flow sensorRange 0.2-30 L/min, dead space < 0.75 mL
    WaveformsPressure-time, Flow-time, Volume-time, CO2-time, Pleth-time
    LoopsPaw-Volume, Flow-Volume, Paw-Flow, Volume-CO2
    Trend72 hours, tabular and graphic

    Power and battery

    AC power100-240 V, 50/60 Hz, 2.7-1.1 A
    DC power12 V, 15 A (backup)
    Battery typeLithium-ion 14.8 VDC, 5800 mAh, built-in
    Number of batteries1 or 2
    Runtime (1 battery)180 min (3 hours)
    Runtime (2 batteries)360 min (6 hours)

    Dimensions and weight

    Dimensions (HxWxD)354 × 315 × 255 mm (unit only)

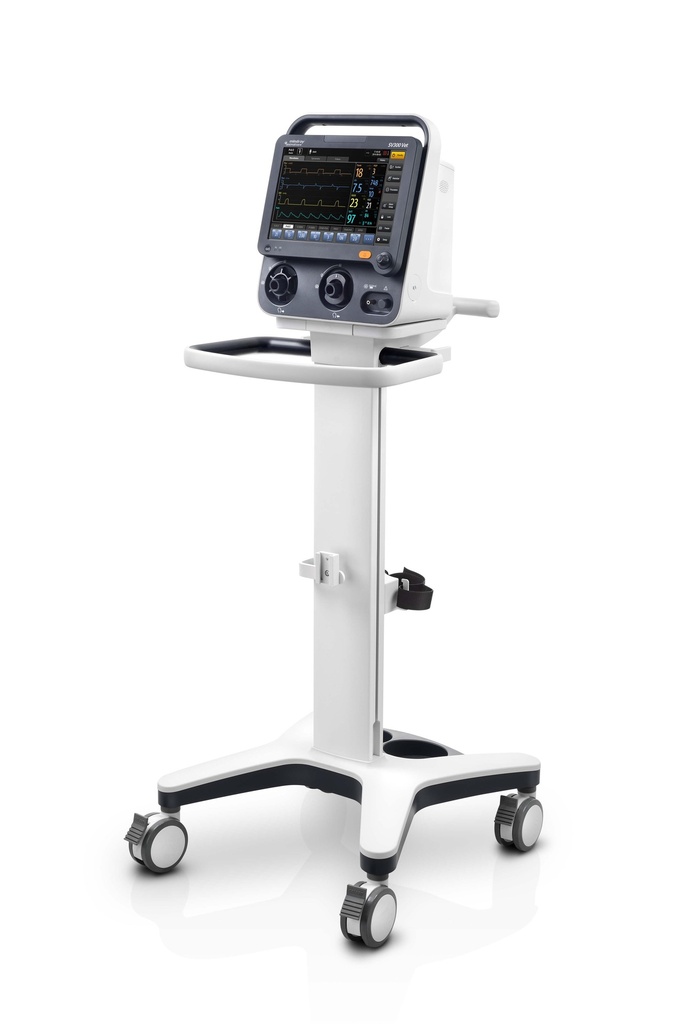

    Dimensions with trolley1365 × 526 × 544 mm
    Weight~10 kg (unit only), ~30 kg (with trolley)
    Operating temperature5 - 40°C
    Humidity10 - 95% (operation and storage)

    Special functions

    IntelliCycleAdaptive sync (Trigger, Tslope, Exp%)
    PulmoSightLung mechanics visualization
    Lung Recruitment Tool (SI)Standardized recruitment maneuver
    SighPeriodic volume increment
    ATRCTube resistance compensation
    Static PV LoopStatic P-V analysis
    ProceduresSuction, Nebulization, Manual breath, Insp/Exp hold, P0.1, NIF

    Documents to download

    Mindray SV300 Vet — Brochure (ENG) (PDF)

    Frequently asked questions about Mindray SV300 Vet

    What patient types does SV300 Vet support?

    SV300 Vet supports three patient types — adult (100-2000 mL tidal volume), pediatric (20-300 mL) and neonate (2-100 mL). Suitable for a wide range of veterinary patients from small breeds to large animals and emergency cases.

    How many ventilation modes does it support?

    SV300 Vet supports 14+ modes — V-A/C, P-A/C, V-SIMV, P-SIMV, DuoLevel, CPAP, PSV, APRV, PRVC, AMV, CPRV, nCPAP, NIV and Apnea Ventilation. Covers both invasive and non-invasive ventilation.

    How long does the battery last?

    With one new battery — 180 minutes (3 hours) under standard conditions. With two batteries — 360 minutes (6 hours). Enables safe patient transport even during power outages.

    What is IntelliCycle?

    IntelliCycle is an adaptive feature that automatically adjusts Trigger, Tslope and Expiration% based on the patient's breathing. Reduces manual setup and improves patient-ventilator synchrony.

    Does it include monitoring?

    Yes — SV300 Vet includes modules for SpO2 (with PI), CO2 (sidestream), O2 sensor, measurement of resistance/compliance/RSBI/WOB/PEEPi/NIF. 72-hour trend in tabular or graphic view.
