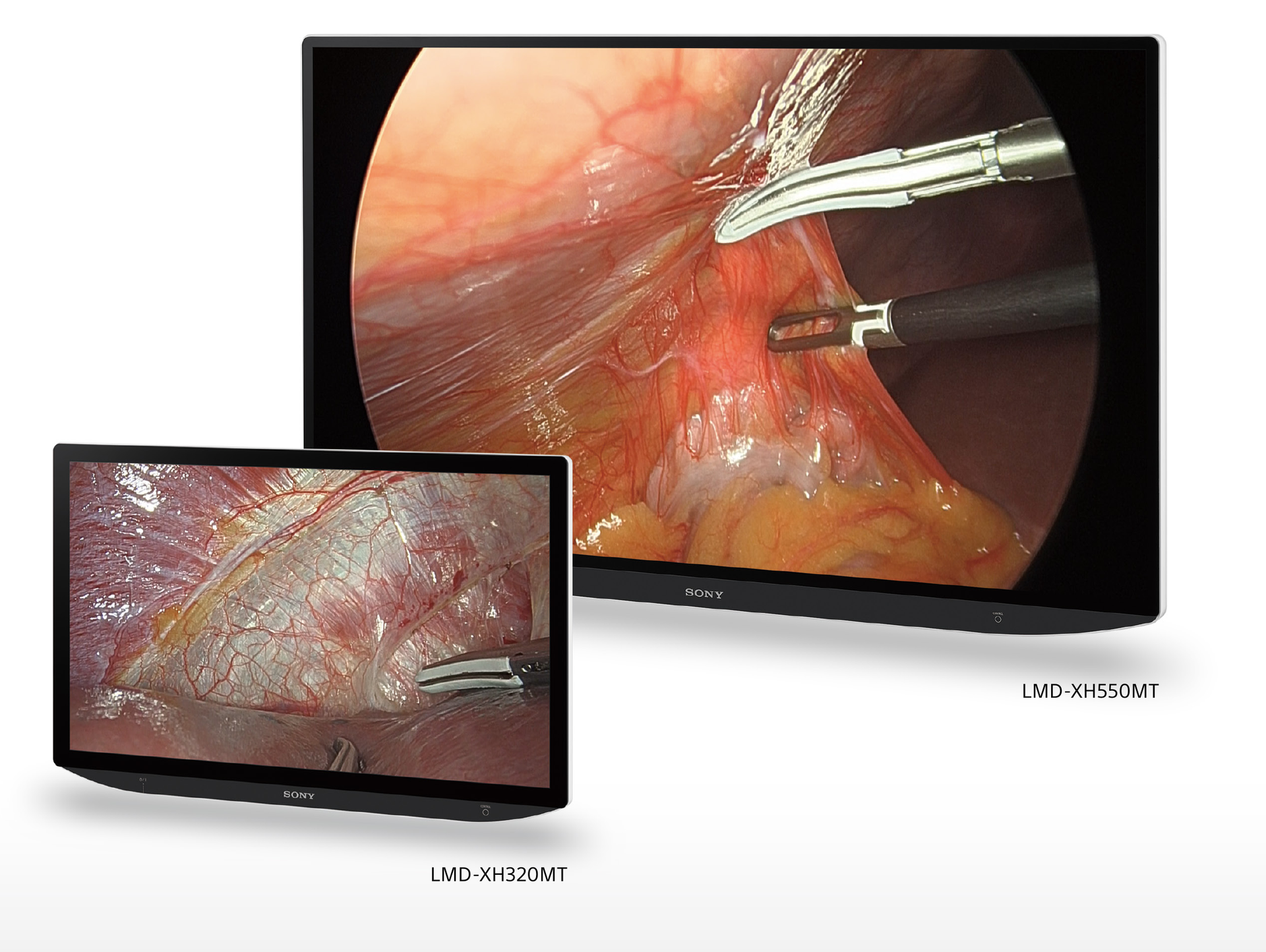

Sony LMD-XH550MT 55" 4K 3D/2D surgical monitor
55" 4K UHD 3D/2D surgical monitor
Sony LMD-XH550MT is a 55-inch 4K UHD (3840 × 2160) 3D/2D surgical monitor with high brightness, wide color gamut and A.I.M.E. technology. 4K and 3D imaging provides depth perception and spatial orientation — suitable for ORs, surgical centers and education.
Official Sony video:
4K 3D and 2D:
Displays 3D and 2D in HD and 4K — side-by-side, line-by-line, top & bottom; 4K dual stream via two 12G-SDI (XH550 only).
High brightness & contrast:
Local Dimming: peak >1500 cd/m², 1,000,000:1 contrast.
HDR (HLG) & BT.2020:
More realistic imaging with wide BT.2020 gamut.
A.I.M.E. technology:
Enhances color, contrast and shadow visibility.
Anti-Reflection:
Minimal glare in brightly lit ORs.
Rich connectivity + CLONE:
12G/3G-SDI, DisplayPort, DVI-D, HDMI; CLONE output (4K or HD).
Hygiene & mounting:
Smooth surface; PIP/POP, 180° rotate; VESA 200×200/400×200.
| Feature | Parameters |
| Panel | TFT Active Matrix LCD, IPS, LED |
| Size (diagonal) | 55" (1387.8 mm) |
| Resolution | 3,840 × 2,160 (4K UHD), 16:9 |
| Luminance (peak) | 1500 cd/m² |
| Contrast | 1,000,000:1 |
| Colors | 10-bit (1.07 billion) |
| 3D modes | side-by-side, line-by-line, top & bottom, dual stream |
| Inputs | 12G/3G-SDI (BNC), DisplayPort, DVI-D, HDMI |
| Outputs | 12G/3G-SDI, CLONE, DC 5V/12V |
| Power | AC 100–240 V, 3.1–1.1 A |
| Consumption | ~290 W (max) |
| Dimensions | 1249.6 × 763.3 × 92.8 mm |
| Mass | ~27 kg |
| Mounting | VESA 200×200 / 400×200 mm |
| IP rating | IP45 (front)/IP32 |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. Medical device (IEC 60601-1).
Download the product brochure:
