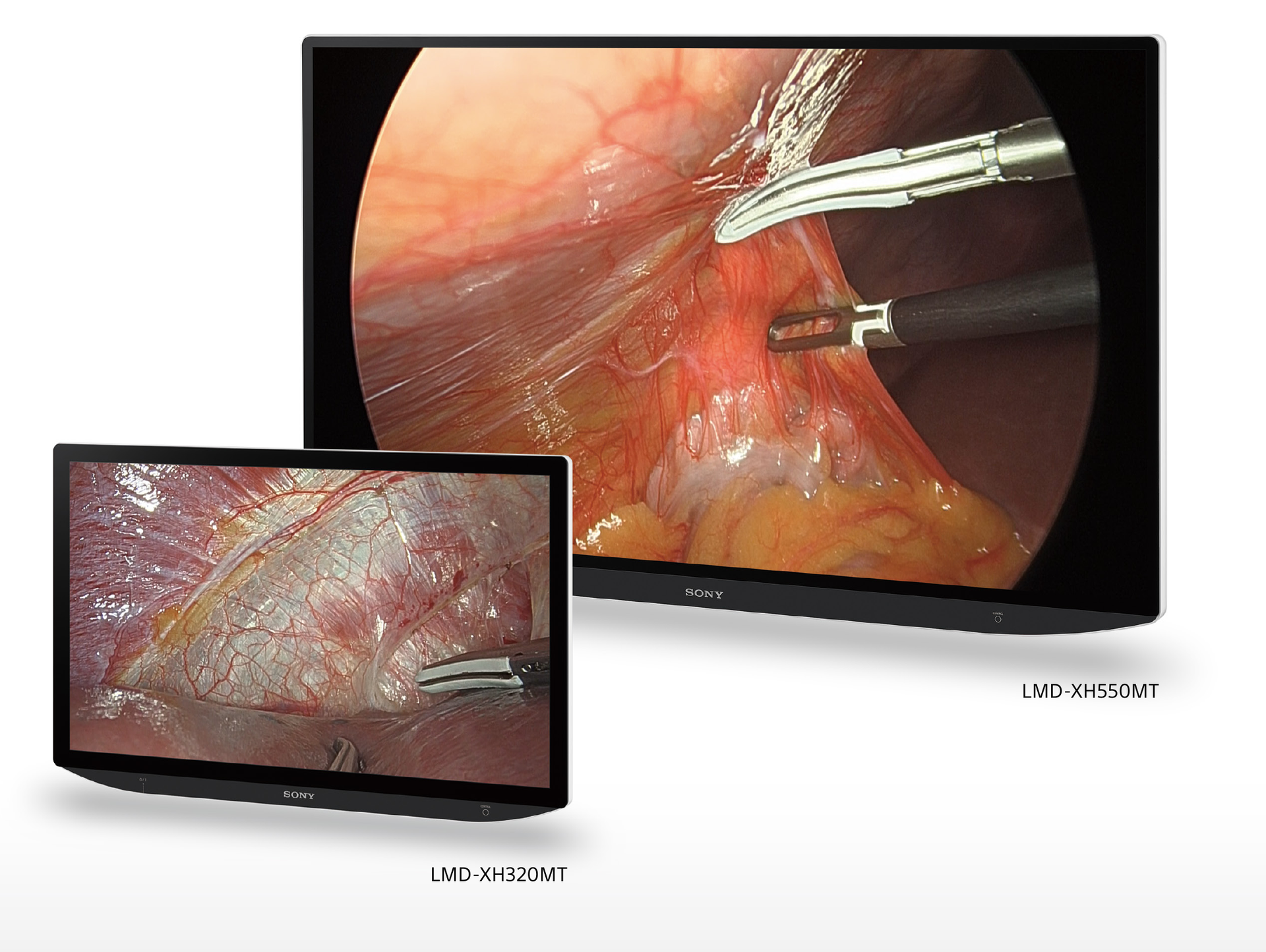

Sony LMD-XH320MT 32" 4K 3D/2D surgical monitor
32" 4K UHD 3D/2D surgical monitor
Sony LMD-XH320MT is a 32-inch 4K UHD (3840 × 2160) 3D/2D surgical monitor with even higher brightness (peak 1750 cd/m²), wide BT.2020 gamut and A.I.M.E. technology. Compact and light (10.5 kg) with a choice of direct AC or DC power.
Official Sony video:
4K 3D and 2D:
3D and 2D in HD and 4K — side-by-side, line-by-line, top & bottom.
Very high brightness:
Local Dimming: peak >1750 cd/m², 1,000,000:1 contrast.
HDR (HLG) & BT.2020:
More realistic imaging with wide gamut.
A.I.M.E. technology:
Enhances color, contrast and shadow visibility.
Compact and light:
~10.5 kg; choice of direct AC or DC (optional adaptor).
Rich connectivity + CLONE:
12G/3G-SDI, DisplayPort, DVI-D, HDMI; CLONE output.
Hygiene & mounting:
Smooth surface; PIP/POP, 180° rotate; VESA 100×100.
| Feature | Parameters |
| Panel | TFT Active Matrix LCD, IPS, LED |
| Size (diagonal) | 32" (800.8 mm) |
| Resolution | 3,840 × 2,160 (4K UHD), 16:9 |
| Luminance (peak) | 1750 cd/m² |
| Contrast | 1,000,000:1 |
| Colors | 10-bit (1.07 billion) |
| 3D modes | side-by-side, line-by-line, top & bottom |
| Inputs | 12G/3G-SDI (BNC), DisplayPort, DVI-D, HDMI |
| Outputs | 12G/3G-SDI, CLONE, DC 5V/12V |
| Power | AC 100–240 V, 2.4–1.1 A; DC 26 V |
| Consumption | ~230 W (max) |
| Dimensions | 753.9 × 476.3 × 84.7 mm |
| Mass | ~10.5 kg |
| Mounting | VESA 100 × 100 mm |
| IP rating | IP45 (front)/IP32 |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. Medical device (IEC 60601-1).
Download the product brochure:
