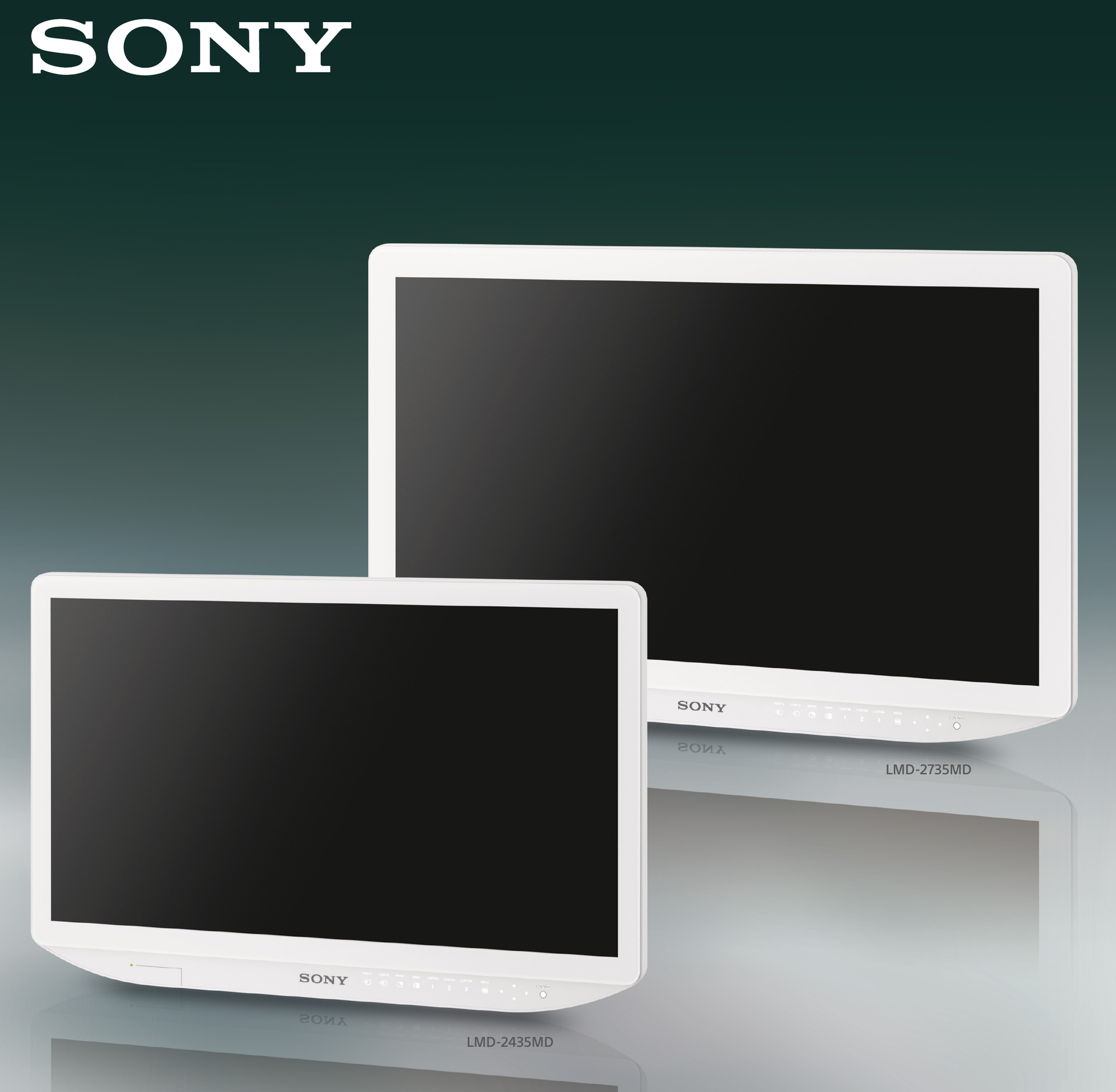

Sony LMD-2735MD 27" Full HD 2D surgical monitor
27" Full HD 2D surgical monitor
Sony LMD-2735MD is a 27-inch Full HD (1920 × 1080) IPS surgical monitor for 2D color video from endoscopic/laparoscopic camera systems and other medical modalities. Rich inputs, DICOM gamma and a fanless design for quiet, hygienic OR use.
Bright Full HD IPS panel:
1920 × 1080, 300 cd/m², 1000:1 contrast, 89° wide viewing angle.
Variety of inputs:
Composite, S-Video, RGB/HD-15, DVI-D and SDI (HD/SD-SDI).
DICOM gamma:
Selectable gamma curves incl. DICOM.
Fanless design:
Quiet operation and less air circulation.
Easy cleaning:
Smooth edge-to-edge surface; narrow bezel.
Multi-image modes:
Mirror, Side-by-Side, PIP, POP; VESA 100×100 mounting.
| Feature | Parameters |
| Panel | a-Si TFT, IPS, LED backlight |
| Size (diagonal) | 27" (686 mm) |
| Resolution | 1920 × 1080 (Full HD), 16:9 |
| Luminance | 300 cd/m² |
| Contrast | 1000:1 |
| Colors | ~16.7 million |
| Viewing angle | 89°/89°/89°/89° |
| Gamma | 1.8 – 2.6, DICOM |
| Inputs | Composite (BNC), S-Video, RGB/HD-15, DVI-D, SDI (HD/SD-SDI), HD15 |
| Outputs | DVI-D; DC 5V (up to 2A) |
| Remote | RS-232C (D-sub 9); RJ-45 |
| Power | AC 100–240 V; DC 24 V |
| Consumption | ~57 W (max) |
| Dimensions | 660 × 427 × 78 mm |
| Mass | ~8.7 kg |
| Mounting | VESA 100 × 100 mm |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. Medical device (IEC 60601-1).
