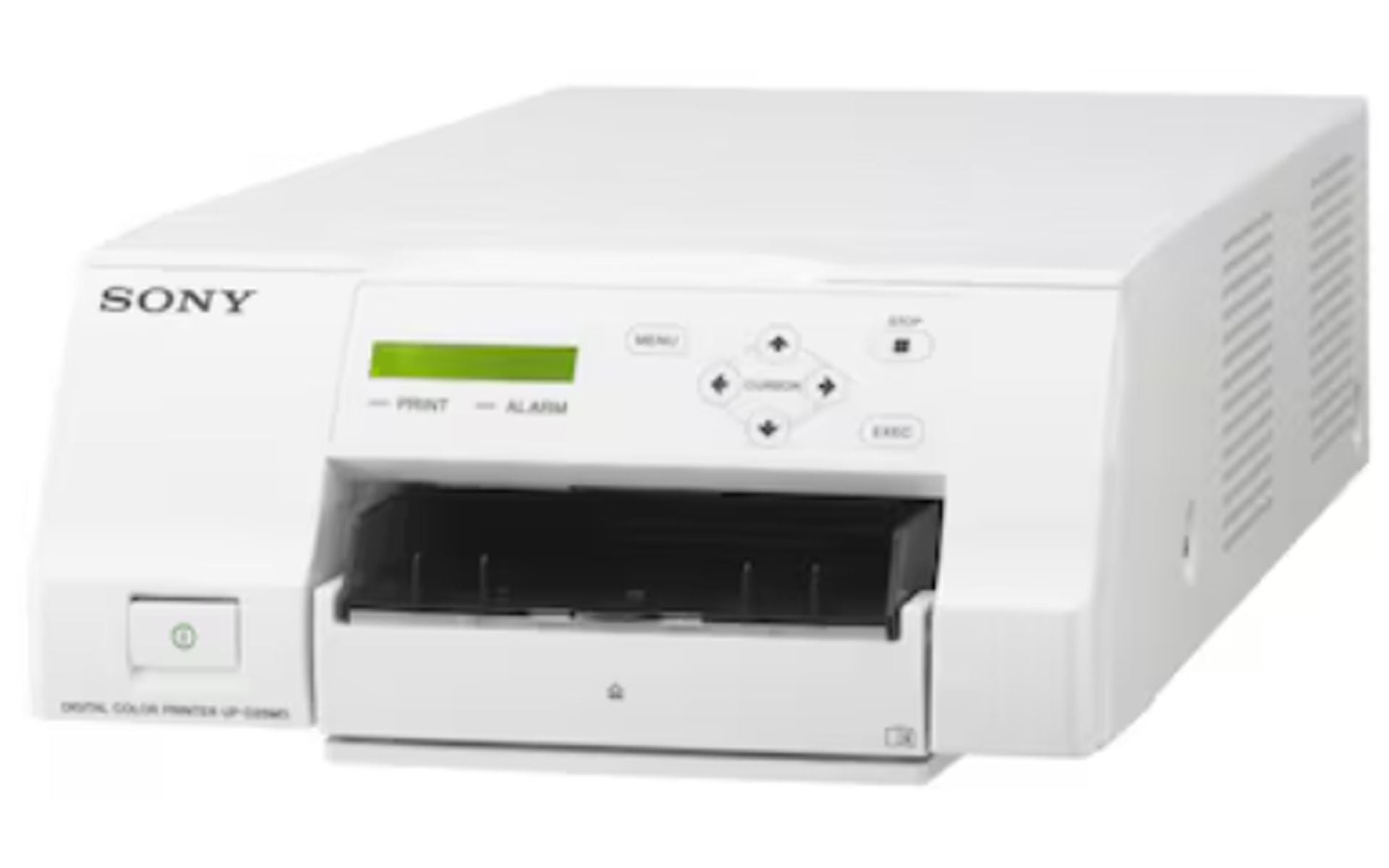

Sony UP-D25MD digital color printer (dye sublimation)
Compact digital color printer with wireless printing
Sony UP-D25MD is a compact digital color printer using dye sublimation, for ultrasound, endoscopy and cardiology. Connects directly via USB and supports wireless printing (optional UPA-WU10). Photorealistic quality at 423 dpi.
Direct USB printing:
Connects directly to ultrasound/endoscopic systems via Hi-Speed USB 2.0.
Wireless printing (UPA-WU10):
Optional cable-free connection between modality and printer.
Photorealistic 423 dpi:
Beyond Full HD (2,100 × 1,600 with UPC-21L).
Large front LCD:
Convenient front operation and media loading; easy color adjustment.
Split-image printing:
Two- or four-split images per sheet (driver selectable).
Compact:
212 × 98 × 398 mm — for tight spaces and carts.
| Feature | Parameters |
| Printing method | Dye sublimation thermal transfer |
| Resolution | 423 dpi |
| Gradation | 256 levels (8-bit) each YMC |
| Picture elements | UPC-21L 2,100×1,600; UPC-21S 1,600×1,200 |
| Interface | Hi-Speed USB 2.0 |
| Wireless printing | Optional UPA-WU10 |
| Printing time | UPC-21L ~29 s; UPC-21S ~19 s |
| Paper tray | L: 50 sheets; S: 80 sheets |
| Power | AC 100–240 V |
| Dimensions | 212 × 98 × 398 mm |
| Mass | 5.5 kg |
| Standards | Medical device; IEC 60601-1 |
* Values are approximate. Medical device (IEC 60601-1).
